DRV - Packaged

DC Drive Technology

The DC590+ is available in

either module, or alternatively

‘DRV’ format.

The DRV version is a self-

contained packaged drive that

includes all the peripheral power

components associated with a

DC drive system, integrally fitted

within the footprint area of

the drive.

DRV version includes:

• AC line or DC armature contactor

• AC line fuses

• DC fuse

(regenerative version)

• Control/field fuses

• Provision for optional motor

blower starter

• Provision for optional auxiliary

control transformer

Saving You:

• Design time

• Panel space

• Component mounting and wiring

• Component sourcing

• Complexity

• Time and cost

DC590+ Designed for Systems

The DC590+ Integrator Series

is the ultimate system drive,

designed to meet the exacting

demands of the most complex

and sophisticated multi-drive

applications across a diverse

range of industries. All the

following functions are available

as standard without the need for

any additional hardware.

• Function Block Programming

• Software Configurable I/O

•

High Resolution (12 bit) Analog

Inputs

• Winder Control

– Open loop with inertia

compensation

– Closed loop speed or current

– Load cell/dancer process PID

• Math Functions

• Logic Functions

• Controlled Field Supply

• ‘S’ Ramp and Digital Ramp

DC590+ Designed For

A World Market

The DC590+ is available with full

application and service support

in over fifty countries worldwide.

So wherever you are, you can

be confident of full backup and

support.

• Support in over 50 countries

• Multi-language menus

• Input voltage ranges from 220-690V

(Special voltages available)

• CE marked

• UL and cUL listed through 500 HP

• 50/60Hz

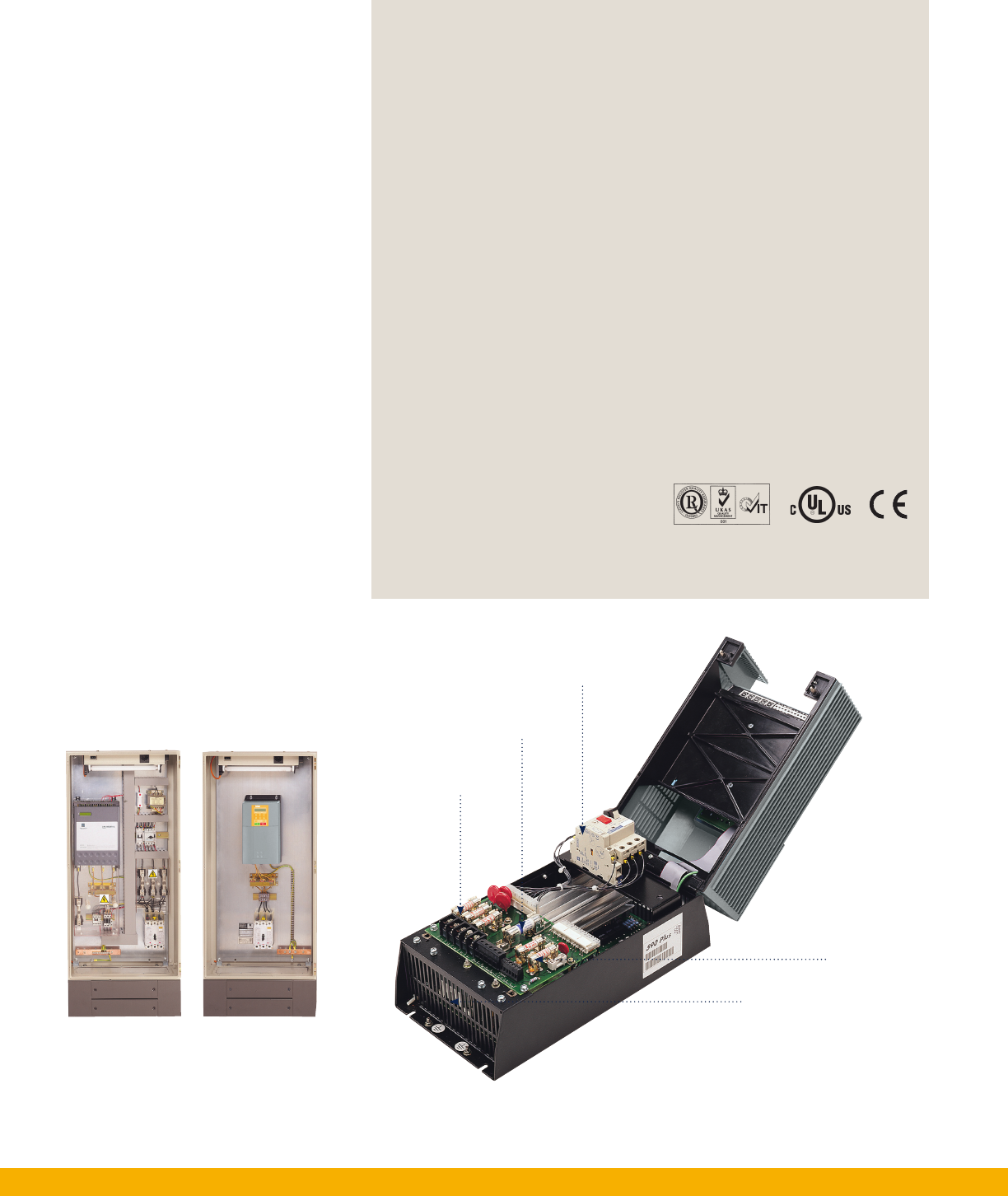

Traditional DC

Drive Section

DC590+ DRV

equivalent, illustrating

panel space saving

and simplification of

panel wiring

AC Line

Fuses

DC Fuse

Motor Blower

Starter

AC Line Contactor

Control/Field Fuse

DC590+ DRV version
